Advanced Networking

ENI

An elastic network interface is a logical networking component in a VPC that represents a virtual network card. It includes one primary IPV4 and multiple secondary IPV4 addresses.
You cannot detach a primary network interface from an instance.
You can create and attach additional network interfaces.
The maximum number of network interfaces that you can use varies by instance type.

A forward proxy server acts as an intermediary for requests from internal users and servers, often caching content to speed up subsequent requests.
Companies usually implement proxy solutions to provide URL and web content filtering, IDS/IPS, data loss prevention, monitoring, and advanced threat protection.
AWS customers often use a VPN or AWS Direct Connect connection to leverage existing corporate proxy server infrastructure, or build a forward proxy farm on AWS using software such as Squid proxy servers with internal Elastic Load Balancing (ELB).

A NACL or Security Group cannot filter requests based on URLs.

NAT gateway is a managed network address translation service.
Deploying a NAT gateway in every spoke VPC can become cost prohibitive because you pay an hourly charge for every NAT gateway you deploy, so centralizing it could be a viable option.

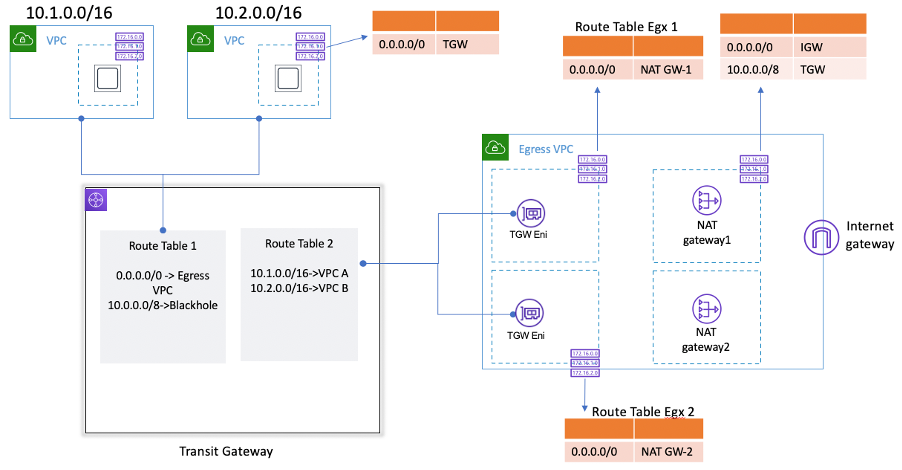

To centralize, you create a separate egress VPC in the network services account and route all egress traﬃc from the spoke VPCs via a NAT gateway sitting in this VPC using Transit Gateway.

In this setup, a VPN connection and/or Direct Connect private VIF is created for every VPC.
This is accomplished by using the virtual private gateway (VGW).
This option is great for small numbers of VPCs, but as a customer scales their VPCs, managing hybrid connectivity per VPC can become difficult.

In this setup, customers consolidate hybrid IT connectivity for multiple VPCs at a single endpoint.
All the VPCs share these hybrid connections.
This is accomplished by using AWS Transit Gateway and the Direct Connect Gateway.
